  • 146-156 MHz
    Mobile duplexer MDF2-8V

    Please visit our partner in EU
    Internet shop

    146-156 MHz  Mobile duplexer MDF2-8V

    Electrical specifications

    Model MDF2-8V
    Operating Frequency band, MHz 146-156
    Insertion loss (adjustable) not more, dB 0.5-2.5
    Frequency separation TX/RX (min), MHz 1
    Impedance, Ohm 50
    Isolation, not less, dB 50
    Typical isolation, dB 70
    VSWR, not more than 1,5
    Input power, not more than, W 100
    Temperature Range, В°C from -30 to +50

    Mechanical specifications

    Model MDF2-8V
    Weight, kg 2
    Connector N-female
    Length/Width/Depth, mm

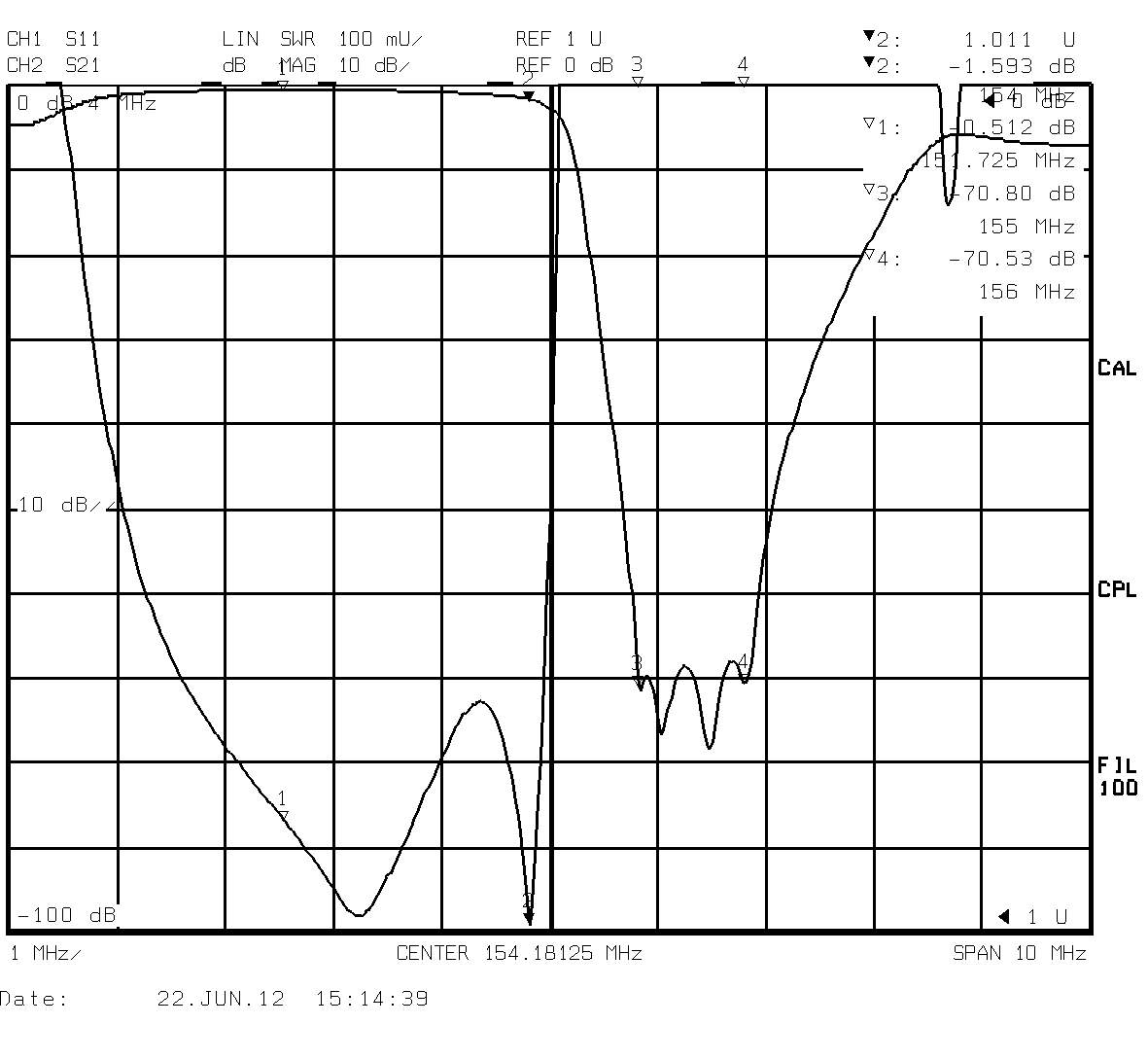

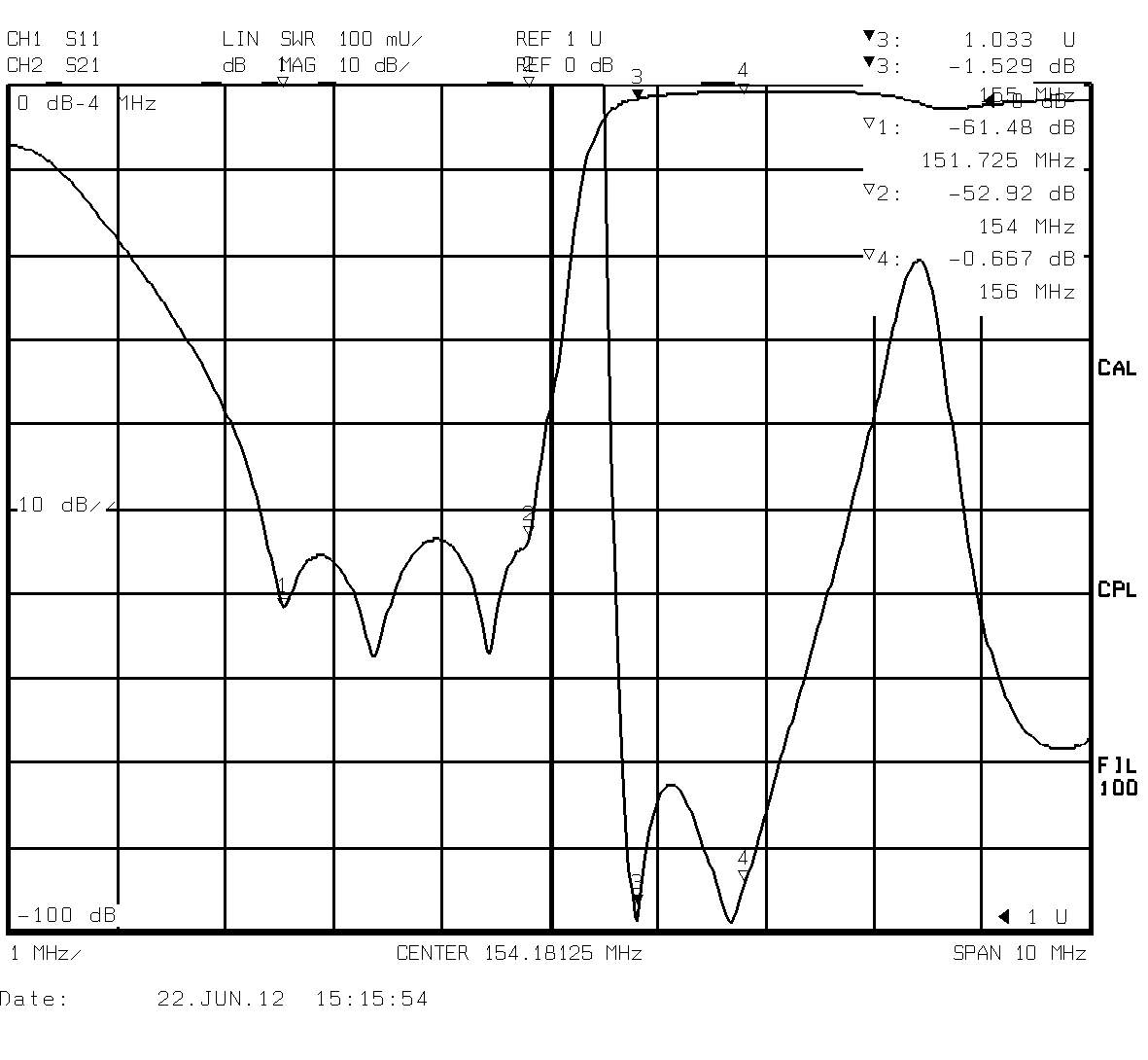

    Typical frequency response curves MDF2-8V

    The information provided on this page is not an official offer.
    To verify actual parameters contact the sales department before ordering.
