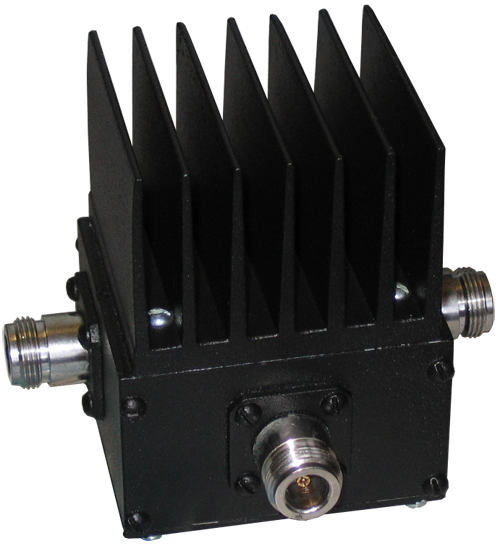

    140-174, 300-360, 400-490 MHz Circulator

    Electrical specifications

    Модель C-VL-50-X/2 C-VM-50-X/2 C-VH-50-X/2 C-UL-50-X/2 C-UH-50-X/2
    Рабочий диапазон частот, МГц 140-154 148-163 158-174 400-470 420-490
    Рабочая полоса, МГц 2 2 2 5 5
    Потери не более, dB 0,45
    Изоляция не менее, dB 30
    Импеданс, Ом 50
    КСВ, не хуже 1,2
    Проходная мощность, Вт не более 50
    Диапазон рабочих температур
    с гарантированной
    стабилизацией, °С
    от -30 до +50

    Mechanical specifications

    Модель C-VL-50-X/2 C-VM-50-X/2 C-VH-50-X/2 C-UL-50-X/2 C-UH-50-X/2
    Масса, кг 0,51
    Разъемы N-мама
    Габариты
    не более, мм
    107х90х80


    It is a requirement to build telecommunications system in dual-frequency simplex mode and install filtering devices in its antenna sections in order to create favorable electromagnetic environment and improve reception conditions at sites with big number of control radio stations. Usually mobile terminals with common transmit-receive antenna are employed as stationary radio stations. But to build previously mentioned system it is required to divide it into separate terminals, receiving and transmitting. Ferrite circulator will help with this. Possessing unidirectional conductivity it will easily provide your radio station with two TX and RX connectors with minimal insertion loss (0.4 dB).
