  • 88-108 MHz
    Dipole antenna D2 FMW-3

    Please visit our partner in EU
    Internet shop

    One element
    88-108 MHz  Dipole antenna D2 FMW-3

    Electrical specifications

    Model D2 FMW-3
    Operating frequency band, MHz 88-108
    VSWR, not more than 1.3
    Gain OMNI, dBi 6.7
    Sector in vertical plane , -3dB 370
    Impedance, Ohm 50
    Max. power input, W 3000

    Mechanical specifications

    Model D2 FMW-3
    Weight, kg 23
    Size, mm 4500x1450x80
    Construction material Aluminium alloy
    Temperature range, 0C from -50 to +50
    Connector 7/16 DIN

    D2 FMW H-plane pattern

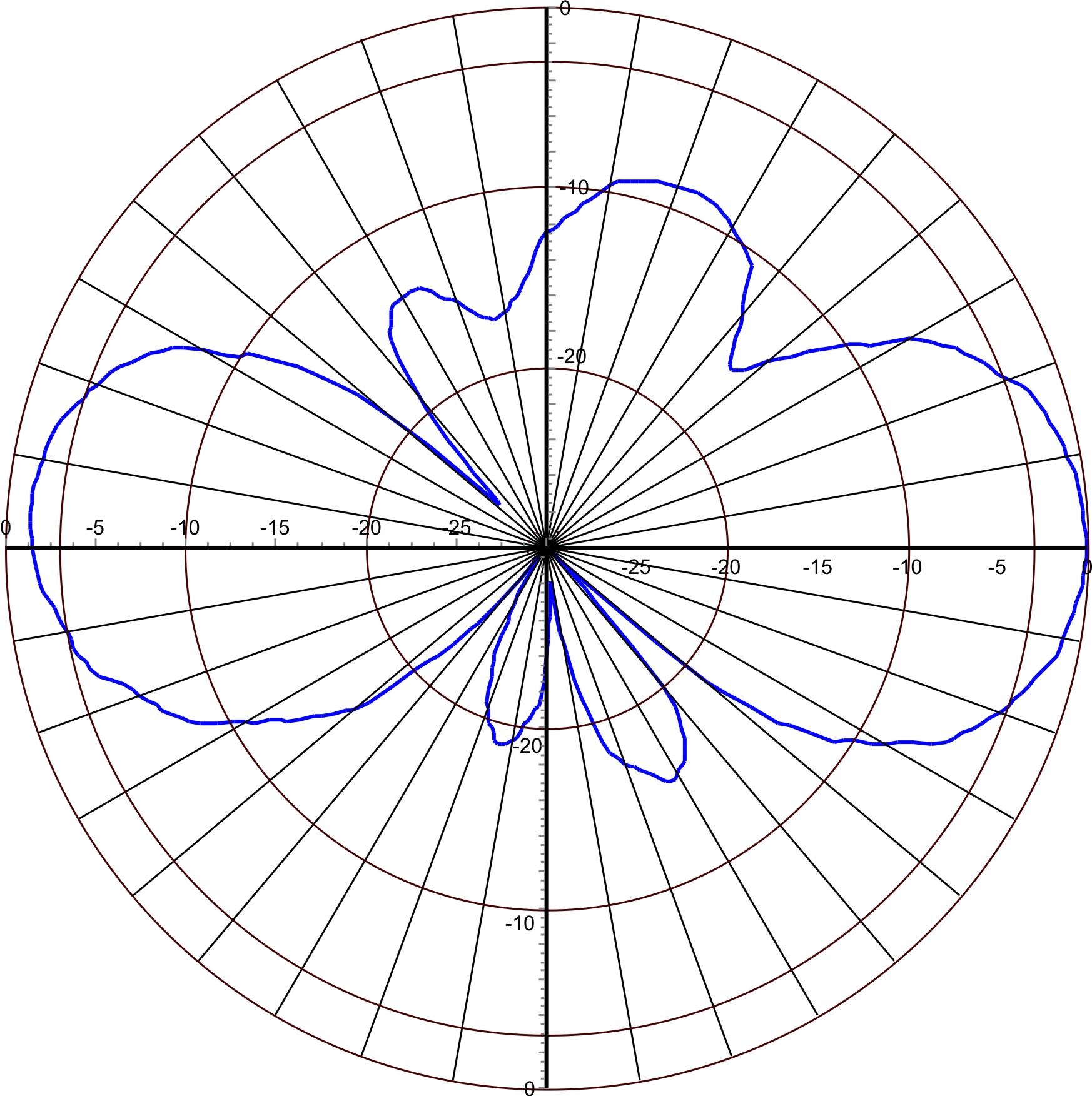

    D2 FMW E-plane pattern

    VSWR, D2 FMW

    The information provided on this page is not an official offer.
    To verify actual parameters contact the sales department before ordering.
